SYSTEM PARAMETERS

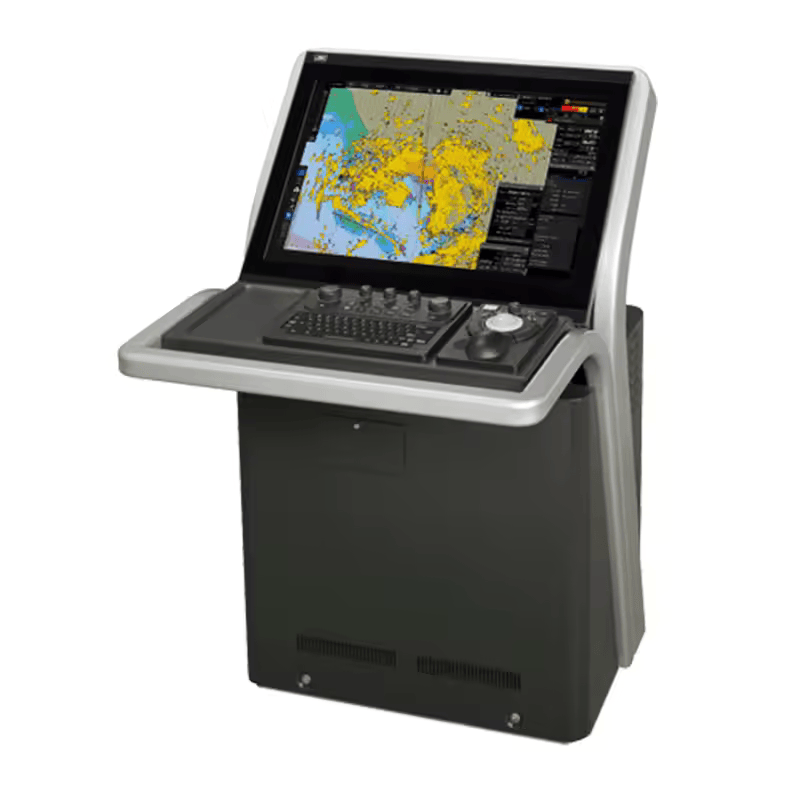

HES-600 ECDIS HMAP
Electronic Chart Display and Information System
Model HES-600
Compliance :
IMO Res A.823(19) / IMO Res A.830(19) / MSC.64 (67), MSC.86 (70) IMO MSC.252 (83) / IEC 60945 / IEC 61162-1/2/3 IEC 61162-450 / IEC 61924-2 / IEC 62288 / IEC 623888

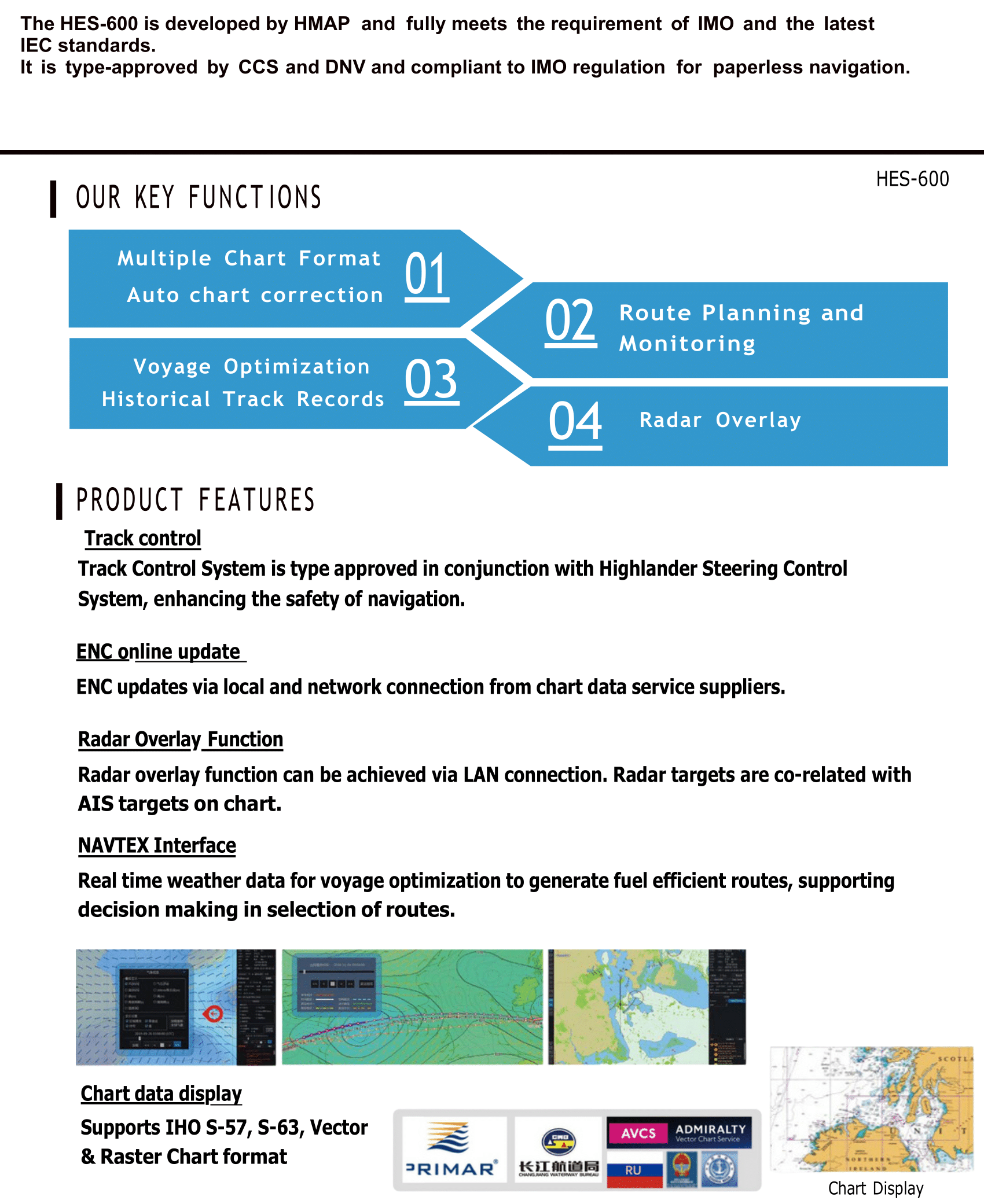

FEATURES

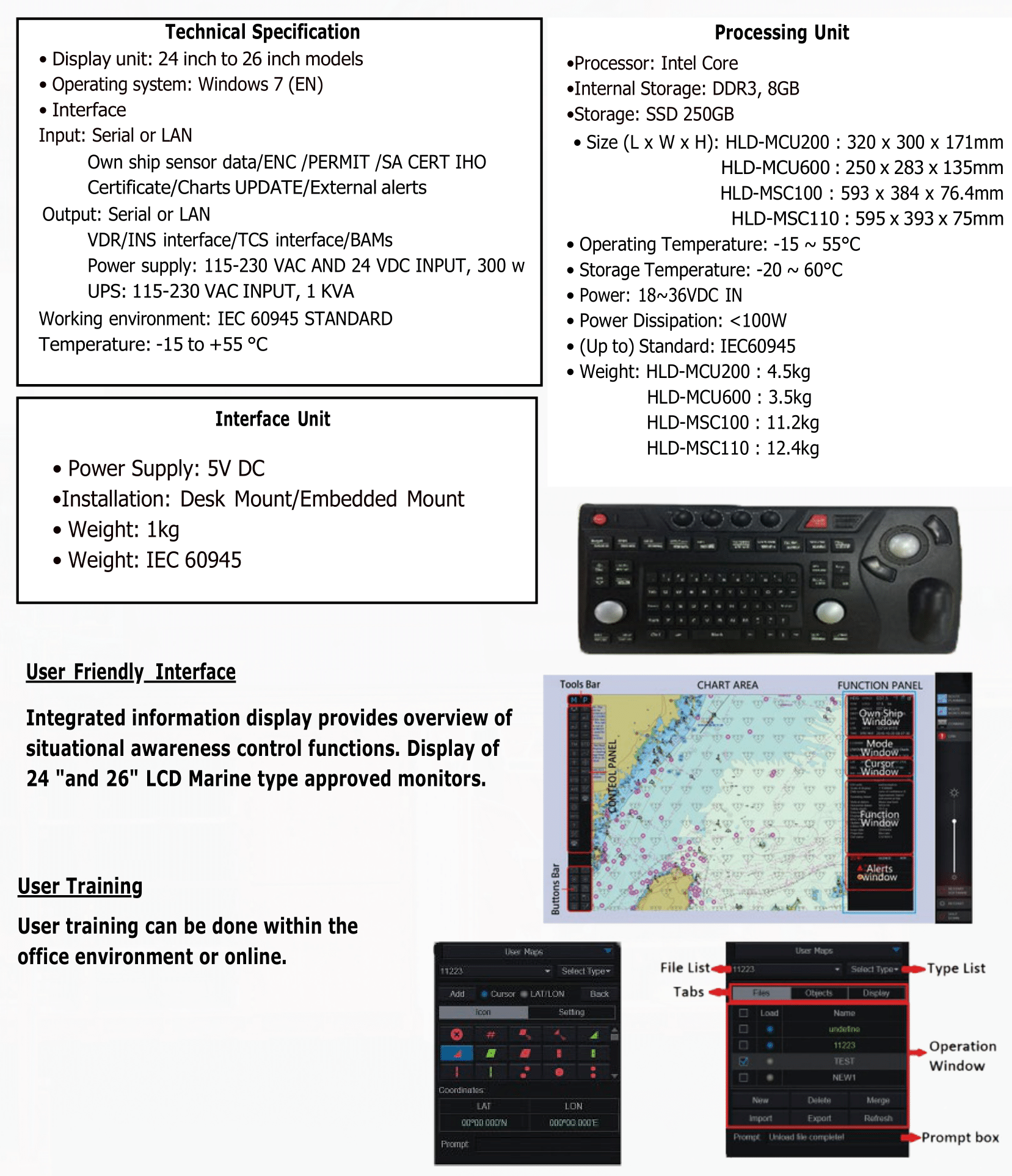

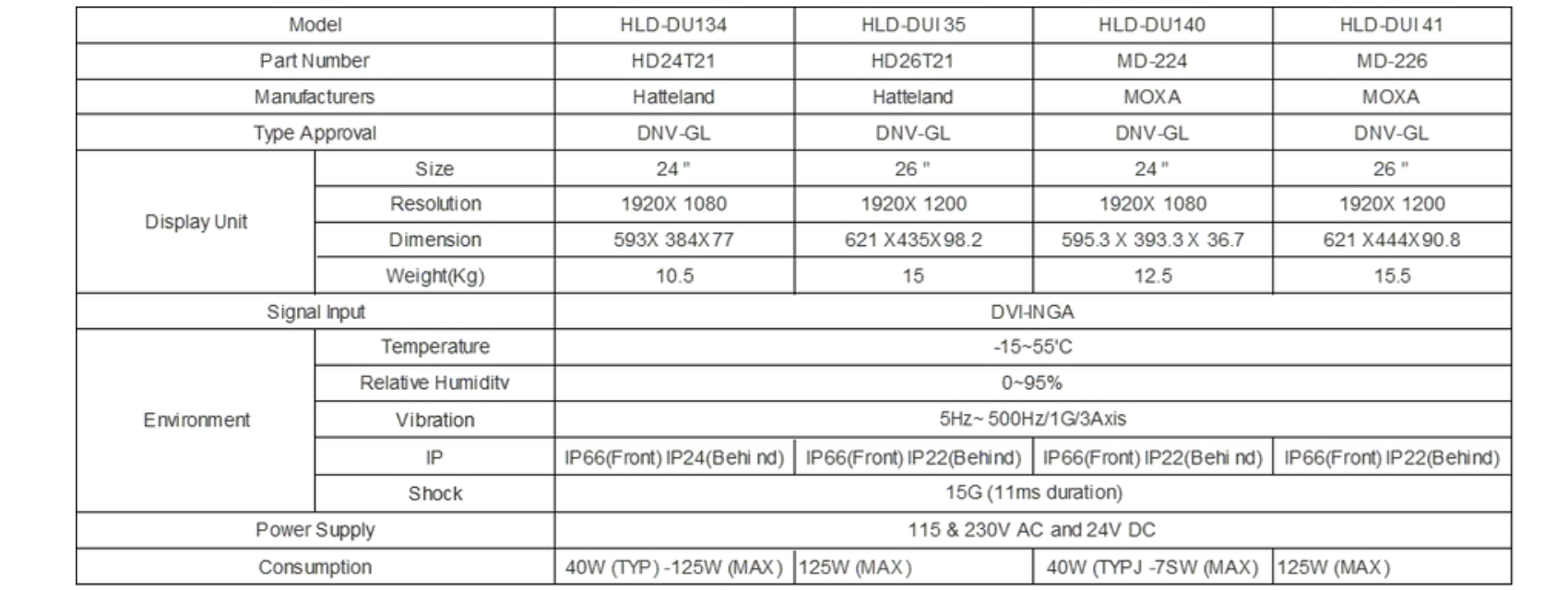

DISPLAY UNIT TECHNICAL PARAMETERS

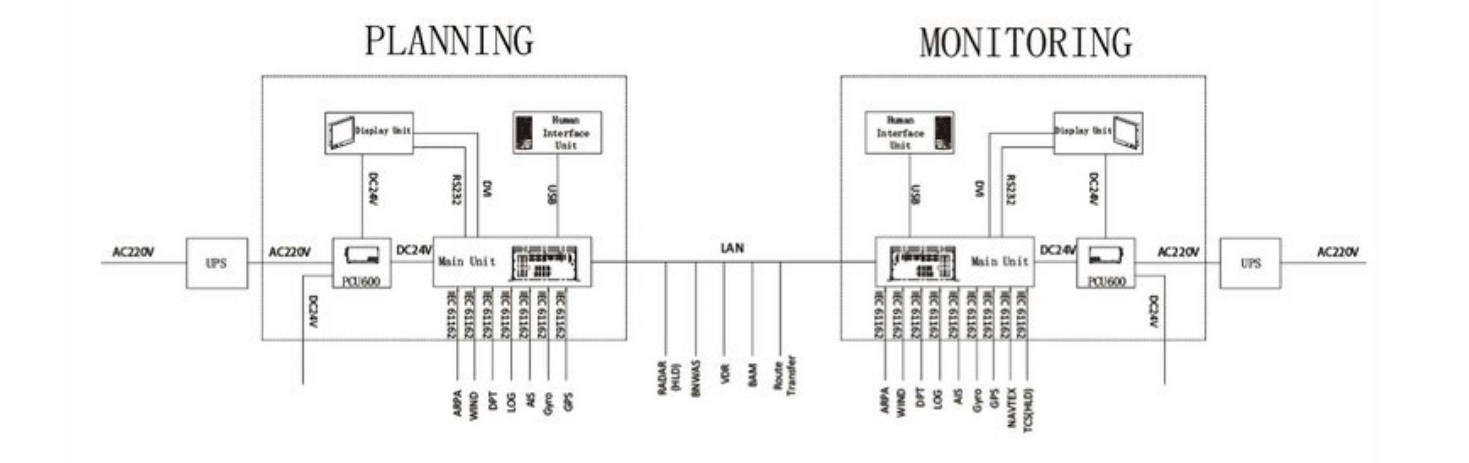

CONFIGURATION

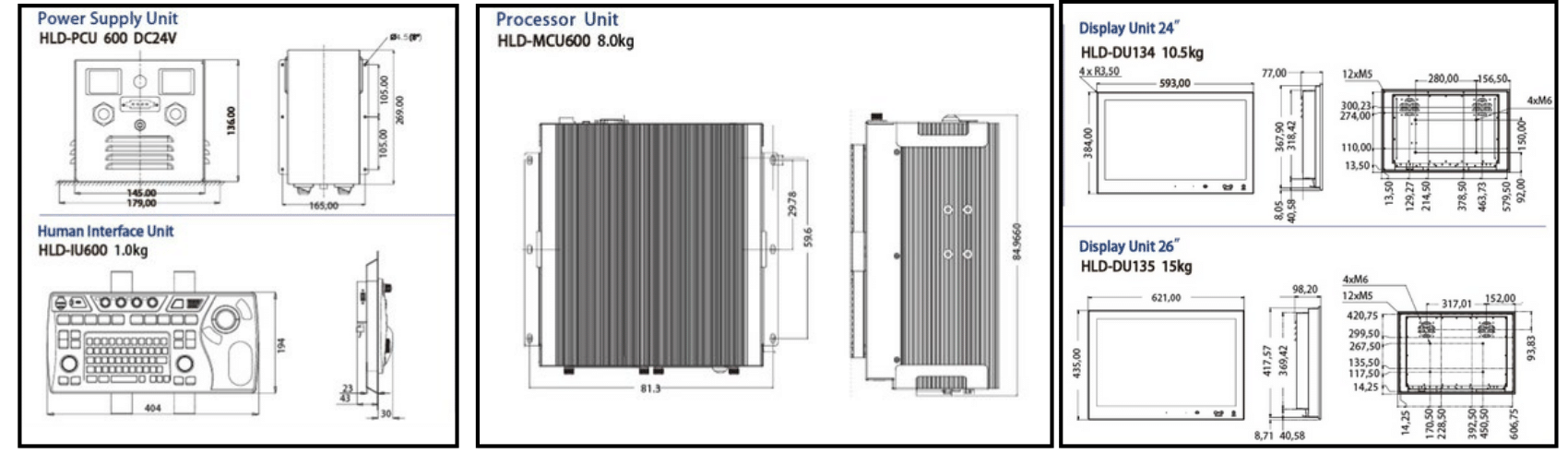

DIMENSIONAL DRAWINGS
